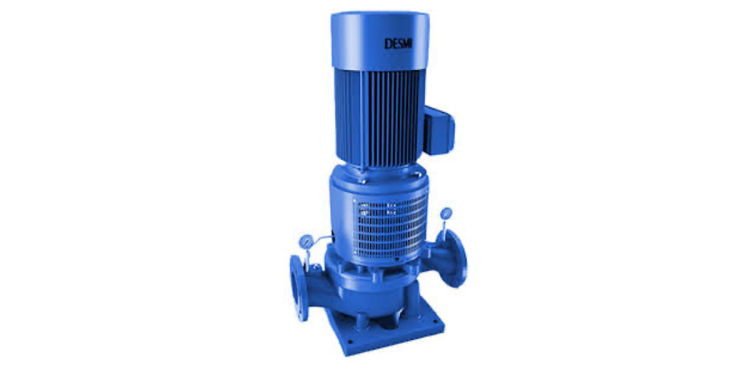

A centrifugal pump is a mechanical device that utilizes the transfer of rotational energy from one or more impellers to move fluids. The impellers, which are driven rotors, cause the fluid to enter along the axis and then cast it out through the vane tips using centrifugal force. As the fluid passes through the impeller, its velocity and pressure increase and it is directed towards the pump outlet. The pump casing is designed to control and slow down the fluid before it is discharged.
The impeller is the primary component of a centrifugal pump and consists of curved vanes. It is typically enclosed between two discs in an enclosed impeller design. For fluids with solids, an open or semi-open impeller, backed by a single disc, is preferred. The fluid enters the impeller through the eye, which is the impeller’s axis and exits between the vanes along the circumference. The impeller is connected to a motor through a drive shaft and rotates at high speed, usually between 500 and 5000 rpm. This rotation accelerates the fluid and forces it out through the impeller vanes into the pump casing.
There are two common designs of pump casings: volute and diffuser. Both designs aim to control the fluid flow and ensure a controlled discharge at a specific pressure. In a volute casing, the impeller is offset, creating a curved funnel with an increasing cross-sectional area towards the pump outlet. This design results in an increase in fluid pressure as it moves toward the outlet. Diffuser designs work similarly, with the fluid pressure increasing as it passes between stationary vanes surrounding the impeller. Diffuser designs can be customized for specific applications, offering enhanced efficiency. Volute casings are more suitable for applications involving solids or high-viscosity fluids, where avoiding additional constrictions provided by diffuser vanes is advantageous. However, the asymmetry of the volute design can lead to increased wear on the impeller and drive shaft.
Centrifugal pumps offer several advantages that make them suitable for a wide range of applications:
Smooth Flow: Centrifugal pumps provide laminar and non-pulsating flow, allowing easy integration with flow meters.
Low Maintenance: These pumps have a simple and uncomplicated design, making them easy to maintain without special tools or equipment.
Efficiency: Centrifugal pumps are highly efficient when handling low-viscosity fluids, as the internal elements are free to rotate.
Versatility: They can be designed to handle various liquids and solids by changing specific parts or impeller design.
Cost-Effective: Centrifugal pumps have a simple design and wide availability, resulting in lower initial costs. When specified correctly, they can also provide the lowest lifetime cost for an application.
While centrifugal pumps offer numerous benefits, they do have some limitations:
Viscosity Range: Centrifugal pumps are most efficient when operating with fluids having viscosities between 0.1 and 200 cP. Higher viscosity feeds can lead to decreased efficiency and higher pressure requirements.
Sensitive Fluids: Pumping shear-sensitive mediums or substances that can be damaged by high-speed impeller rotation is not ideal for centrifugal pumps. Positive displacement pumps, which operate at lower speeds, are preferred for such applications.
Priming and Intermittent Supply: Centrifugal pumps require initial priming with the pumped fluid and cannot provide suction when dry. They are also not suitable for applications with intermittent supply. Positive displacement pumps are better suited for these scenarios.
Variable Flow: A centrifugal pump’s flow is influenced by changing pressures, resulting in a variable flow rate. Positive displacement pumps, in contrast, provide a constant output even with changing pressures.
Municipal Water Supply
Centrifugal pumps play a crucial role in providing potable water to municipalities. These pumps efficiently transport water from reservoirs, rivers, or underground sources to treatment plants, where it undergoes purification processes to make it safe for consumption. The ability of centrifugal pumps to handle large volumes of water makes them ideal for ensuring a steady supply to the ever-growing urban population.
Agriculture and Irrigation
In the agricultural sector, centrifugal pumps are utilized for irrigation purposes. They enable farmers to distribute water from wells, ponds, or rivers to their crops efficiently. Centrifugal pumps help optimize water usage by ensuring controlled and targeted irrigation, ultimately leading to better crop yields and sustainable farming practices.
Centrifugal pumps find extensive use in various industries, including chemical, petrochemical, pharmaceutical, and food processing. These pumps can handle a wide range of fluids, from corrosive chemicals to viscous liquids, making them essential for fluid transfer, circulation, and processing in industrial settings.
In summary, centrifugal pumps operate by utilizing rotational energy to move fluids efficiently. With their simple design and ease of operation and maintenance, they offer cost-effective solutions for various low-pressure, high-capacity pumping applications involving low-viscosity fluids. Positive displacement pumps are preferred for highly viscous fluids, complex feeds, shear-sensitive mediums, and applications requiring accurate dosing.
